Product Description：

For those who want to invest in garbage sorting and recycling, Fangxin construction waste screening machine is very necessary. For different types of garbage (such as domestic garbage, municipal garbage, construction garbage, demolition garbage, landfill garbage, etc.), we have corresponding equipment to sort them. Finally, the garbage that the machine cannot sort can be sorted by our sorting equipment. Garbage manual sorting platform, so the sorting rate of our garbage sorting plant can reach more than 90%.

construction waste

How does the drum screen sort waste?

The drum screen is installed at a certain angle, and the motor drives the drum device to rotate around its axis. When the garbage enters the drum, the garbage rolls along the water flow. The garbage smaller than the screen hole is sorted out at the bottom outlet, while the solid waste larger than the screen hole continues to roll on the screen surface and is sorted out at the end outlet.

After treatment

Features:

1. It can process large amount of garbage without blocking holes and can sort the particles accurately.

2. It has a fully sealed structure, no dust or pollution, and a good production and working environment.

3. It has a simple structure and is easy to maintain.

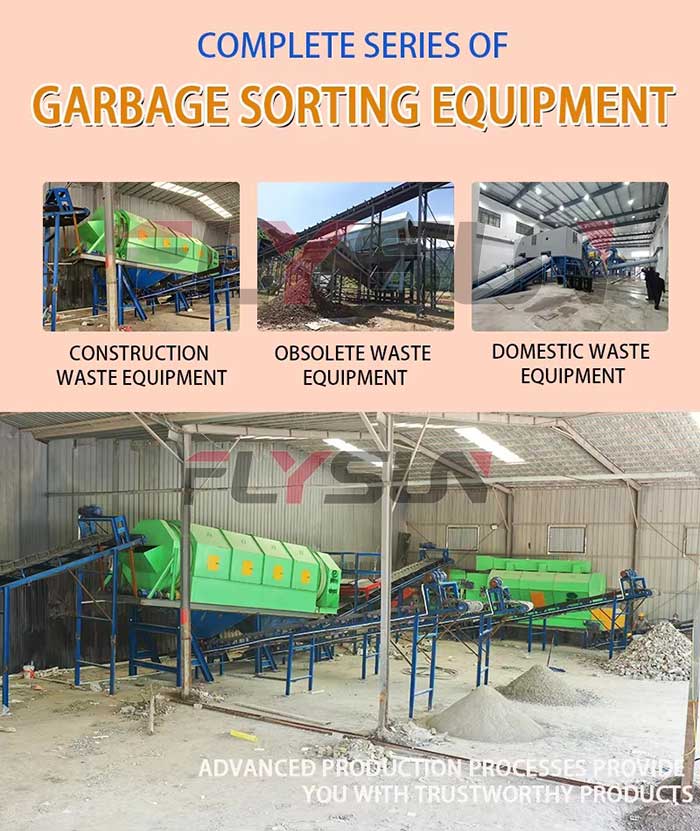

Delivery site

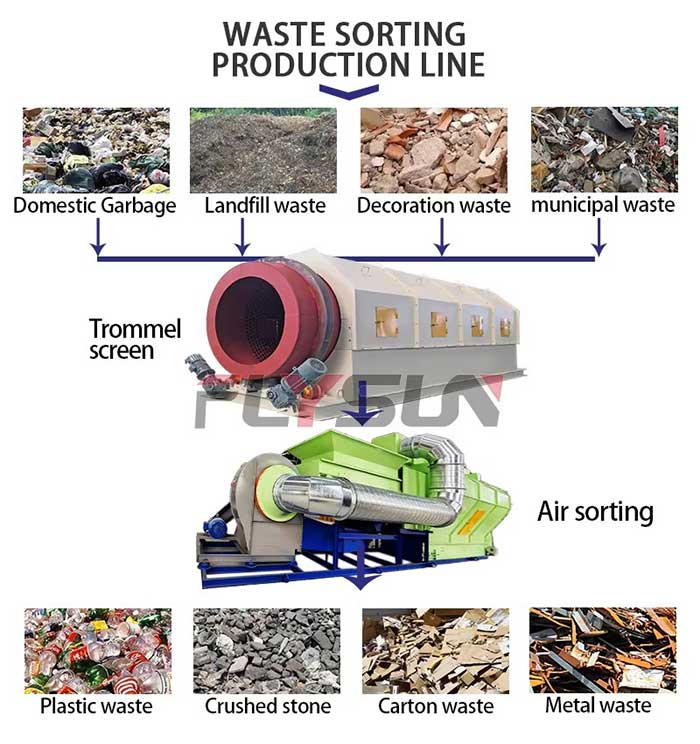

Drum screen machine works in garbage sorting line/garbage sorting recycling plant

1. Forklift transports waste to the feeding platform, and the hopper takes away the waste.

2. The waste/garbage is evenly distributed by the feeder, and then evenly sent to the next process by the belt conveyor.

3. The waste will be sent to the drum screen machine and divided into two parts. One is larger than 50mm in diameter (the plug hole size is 50-200mm designed according to the actual waste). These wastes are mainly divided into bottles, plastics, soles, clothes, etc. The other is small waste less than 50mm, such as pebbles and soil. At the same time, scrap metal will be picked out by a strong magnetic separator.

4. The remaining garbage passes through the manual sorting platform. Workers will pick out those wastes that can be recycled directly.

5. Plastics will be packaged by balers; stones and soil are directly transported to outdoor landfill or crushed to make bricks; we can pick out useful materials from the waste and recycle them.

Customer Case

Qualifications

Advantages of the construction waste treatment machine production line:

1. High sorting efficiency. The special design greatly improves the efficiency. The screening is thorough and can reach 90%. Therefore, it is highly appreciated by foreign customers.

2. High-quality parts. The parts we use are of excellent quality. For example, stainless steel has anti-corrosion function. The frame is welded with international steel and has a compact structure.

3. Automation. The construction waste separator machine is fully automatic. Therefore, the entire operation process only requires a few people to manage, saving a lot of labor costs and reducing the error rate.

4. All electric machines are equipped with anti-noise shells. Therefore, the noise can be controlled below 80db.

Customer photo

As a leading construction waste screening machine manufacturer, Fangxin designs and provides a full range of sorting equipment to alleviate the global waste problem. Our products include waste sorters, waste conveyors, waste drum screens, magnetic metal separators, waste air separators, waste incinerators, waste shredders and waste balers, etc. They are widely used and highly recommended all over the world.
